Lego Go-Kart

Autonomous racingbot for ME 218B

For ME 218B our task was to design an autonomous racingbot which would race four laps around a course, shoot a foam ball into a bucket and traverse a see-saw obstacle. My group of John Schoech, Kyle Moy, Alex Lin and I decided to use a combination of Legos and 3D printed parts instead of lasercut particle board in order to have the lightest robot possible. Not only did this design decision make our bot the fastest, using Legos allowed us to iterate on our design much more frequently and quickly. Our original plan was to use the computer vision based GPS system implemented on the course but because the system was so unreliable we ended up going with a simple bump sensor to navigate the course Roomba style. Completed winter of 2015.

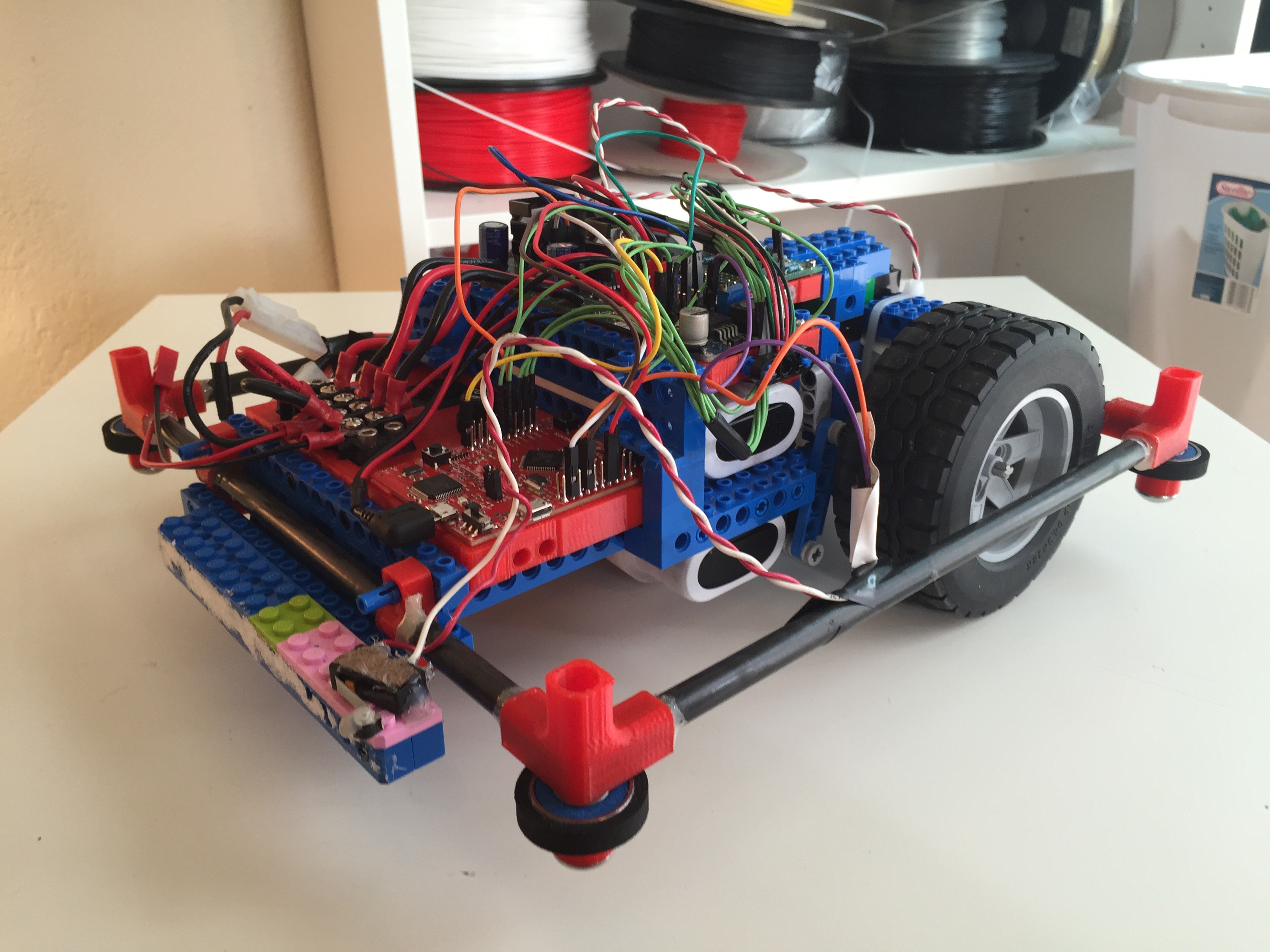

Using foam covered bearings on the corners of our rollcage allowed us to ride the walls

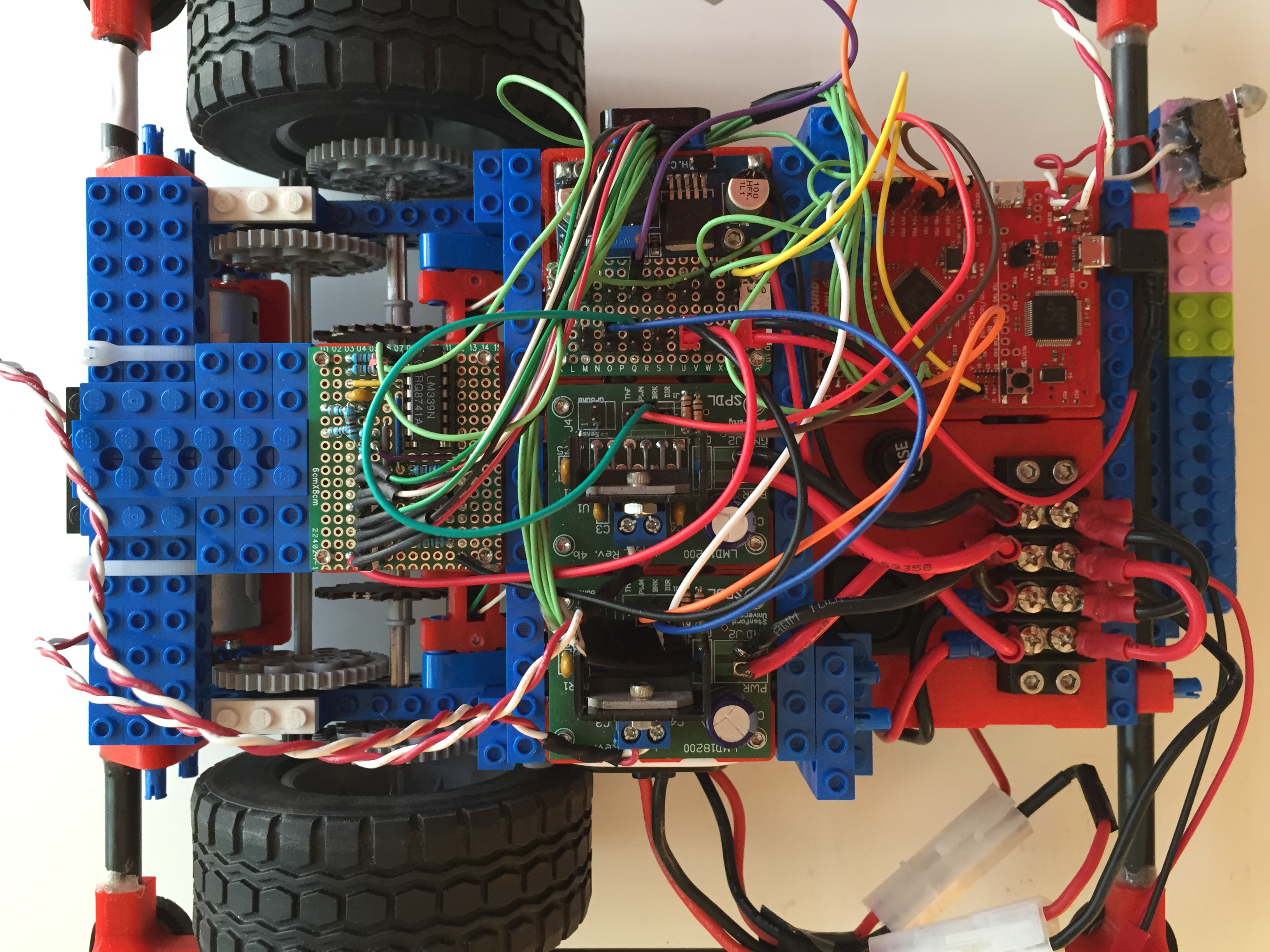

We designed 3D printed adapters for all of our circuit boards which interlocked with the technics Legos using blue Lego pins.

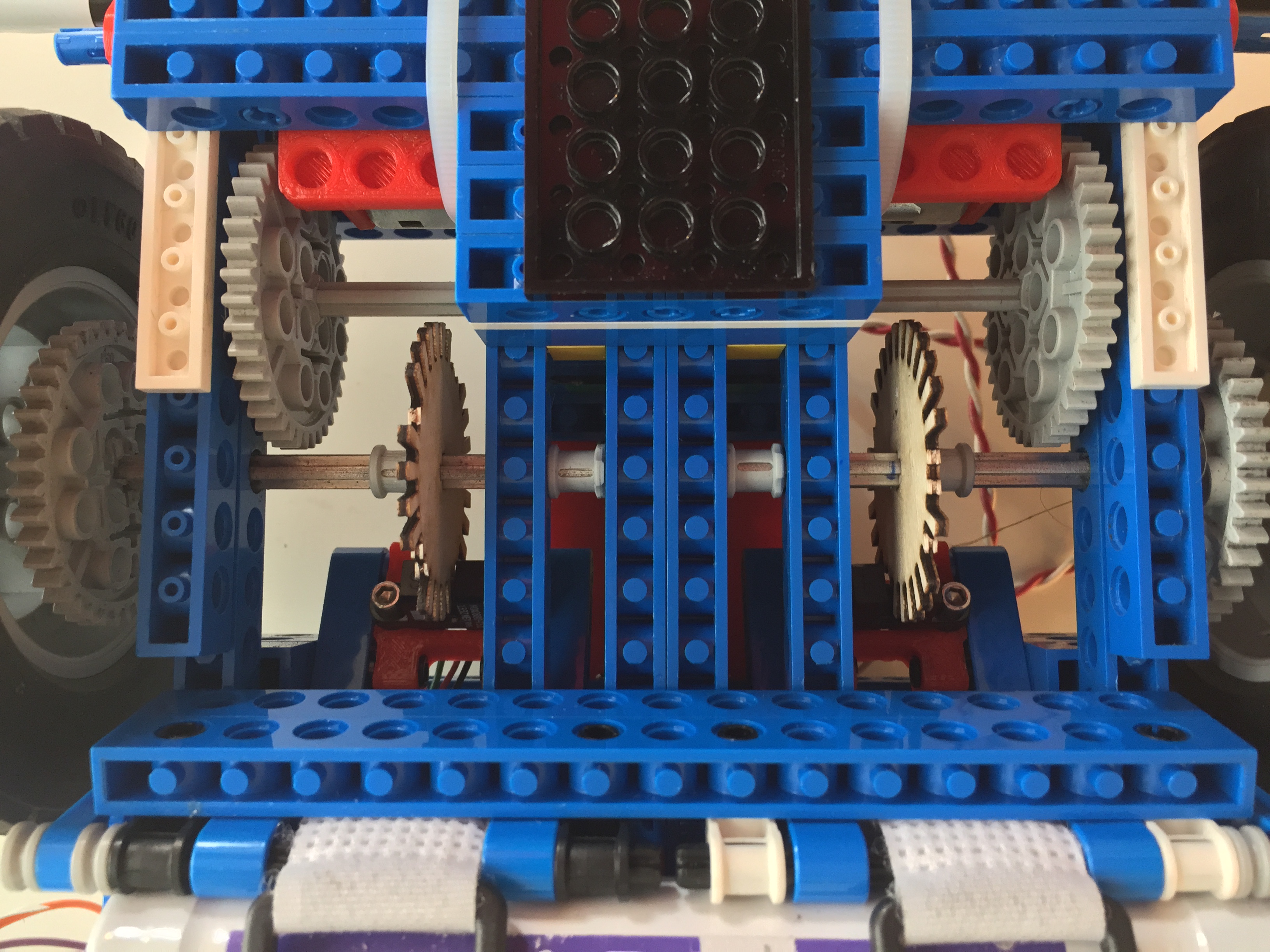

All that racing knocked a few teeth off our encoder wheels.

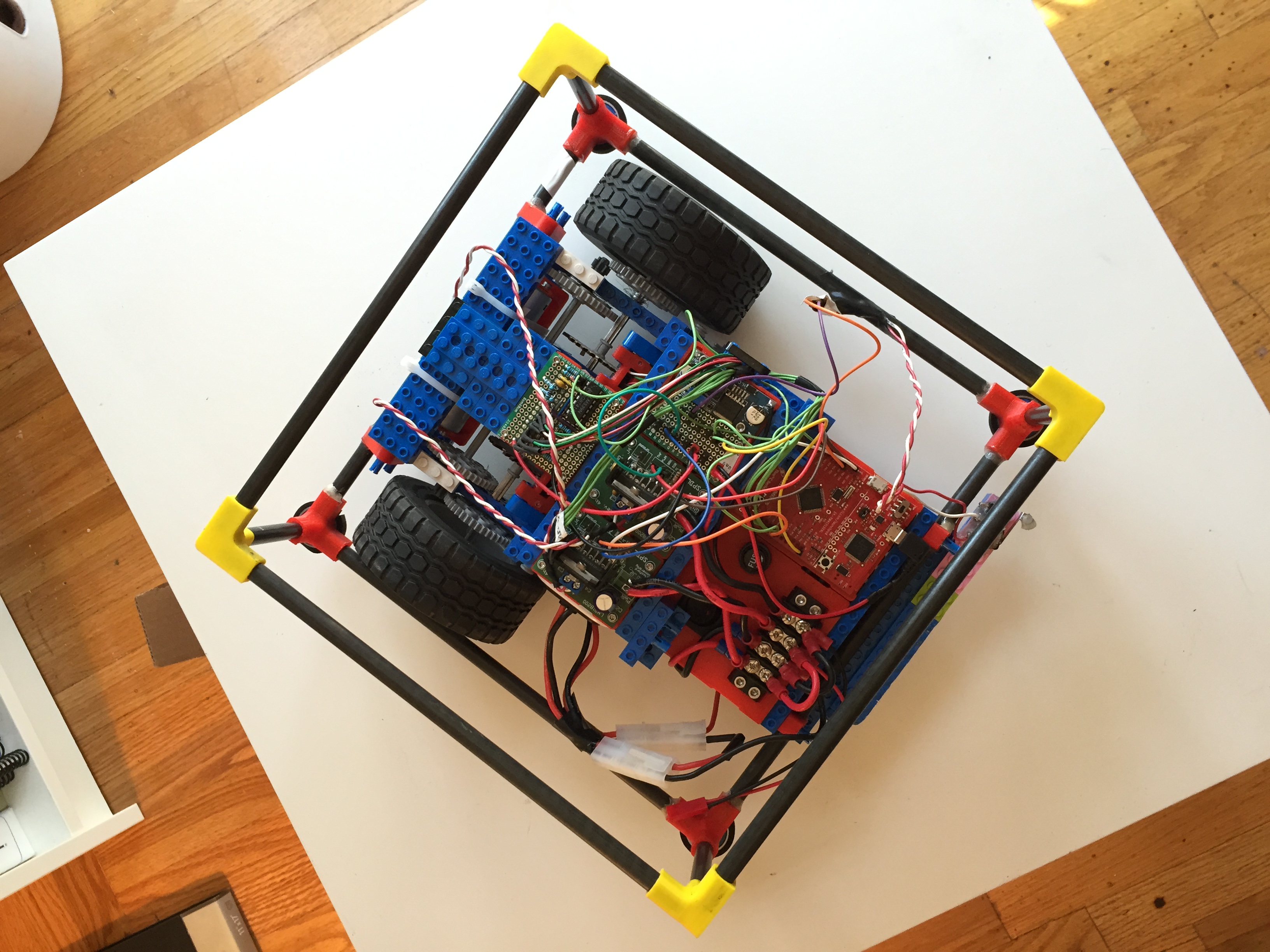

If the GPS system on the course had actually worked we would have been able to bank the corners like this.
